Universal Bellows

About Universal Bellows

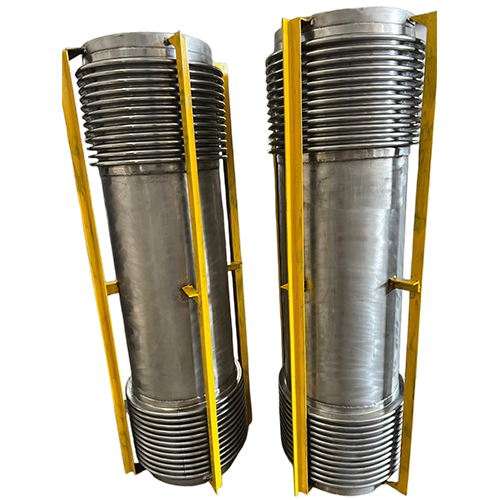

A Universal Bellows also called a Universal Expansion Joint is an expansion joint design that consists of two bellows elements connected by a common center pipe spool piece It is mainly used to absorb large lateral movements in a single plane or multiple planes and can also absorb some axial and angular movements

What Does a Universal Bellows Contain

Two Bellows Elements

• Two corrugated flexible metallic bellows joined by a center pipe spool
• The dualbellows arrangement provides high flexibility compared to a single bellows
• Center Spool Intermediate Pipe
• A rigid connecting pipe between the two bellows
• Maintains spacing and transfers loads between bellows

End Connections

• Flanges or Weld Ends for pipeline connection

Tie Rods Optional but Common

• Often added to control the pressure thrust and keep the universal joint restrained
• Helps guide lateral movement and limits overextension or compression

Inner Sleeve Optional

• Installed inside to protect bellows from erosion turbulence or highvelocity flow

Outer Cover Optional

• Shields the bellows from mechanical damage and environmental exposure

Key Characteristics

• Movement Absorbed Primarily lateral displacement plus some axial and angular movement
• Ideal For Piping systems with offsets large lateral expansion or where space constraints prevent using a single axial unit

Available Types

• Unrestrained Universal Bellows requires external anchors and guides
• Tied Universal Bellows includes tie rods to resist pressure thrust

Summary Table

Component Purpose

• Two Bellows Provide flexibility for large lateral movement
• Center Spool Maintains spacing and structural integrity
• End Connections Connects the unit to the pipeline
• Tie Rods Optional Controls pressure thrust and limits movement
• Inner Sleeve Optional Protects against erosion and flow turbulence
• Outer Cover Optional Mechanical protection
