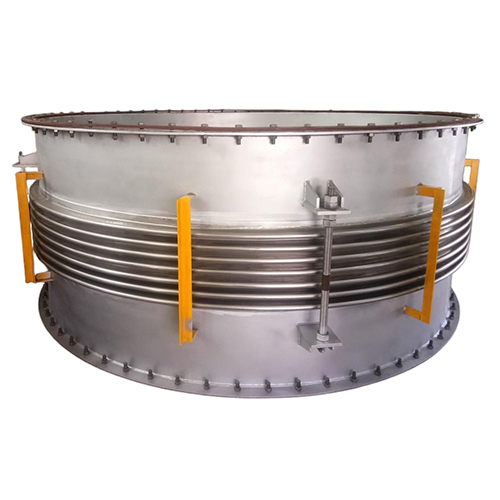

Single Axial Expansion Bellows

Price 42000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Single Axial Expansion Bellows Specification

Max. Temperature
Up to 400C (varies by material)

Head Code
Round

Media
Gas, Water, Oil, Steam

Flange
Carbon Steel / Stainless Steel, Drilled as per ANSI/BS/DIN

Surface Treatment
Polished / Galvanized / Painted

Material
Stainless Steel / Carbon Steel / Alloy Steel

Technique
Seamless / Welded

Type
Single Axial Expansion Bellows

Connecting Type
Flanged / Welded / Threaded

Shape
Cylindrical

Working Pressure
Up to 25 Bar (varies by model)

Size Range
25 mm to 1000 mm NB

Length
Customized as per requirement

Movement Type
Axial Movement Only

Ends
Fixed Flange / Loose Flange / Butt Weld End

Corrugation Profile
Single Ply / Multi Ply

Application
Pipelines / Refineries / Power Plants / Chemical Plants

Design Standard
EJMA / ASME

Leakage Rate
Less than 1x10 mbar L/s

Test Pressure
1.5 times of working pressure

About Single Axial Expansion Bellows

A single axial metallic bellows is a basic, single-element expansion joint designed to absorb movement only along its axis, which is the length of the pipe. It is made of a convoluted, thin-walled metal, such as stainless steel, and is used to prevent stress and fatigue in piping systems by absorbing thermal expansion, contraction, or vibration

Exceptional Durability and Adaptability

Crafted from high-quality stainless steel, carbon steel, or alloy steel, these axial expansion bellows are built to withstand harsh industrial environments. Their robust design accommodates axial thermal expansion and contraction, reducing stress on pipelines and equipment. Suitability for a wide range of temperatures-up to 400C-makes them versatile for multiple industries, including refineries, chemical plants, and power stations.

Precision Engineering and Customization

Each bellow is engineered according to EJMA or ASME design standards for assured safety and reliability. Available in sizes ranging from 25 mm to 1000 mm NB, and customizable in length, customers can select from a variety of end connections, surface treatments, and corrugation profiles. All units undergo stringent quality tests-such as hydrostatic and leakage testing-according to international norms.

FAQ's of Single Axial Expansion Bellows:

Q: How do Single Axial Expansion Bellows function in a pipeline system?

A: Single Axial Expansion Bellows are engineered to absorb axial movement caused by thermal expansion or contraction of pipelines. By compensating for these shifts, they help prevent stress damage to the pipework, ensuring operational integrity and extended service life.

Q: What industries commonly use these bellows and for which applications?

A: These expansion bellows are widely used in industries such as refineries, power plants, chemical plants, and various pipeline systems. They are highly effective in systems transporting gas, water, oil, or steam where controlled axial flexibility and resistance to pressure are essential.

Q: When is it necessary to install an axial expansion bellow in a system?

A: An axial expansion bellow is recommended when there is expected thermal movement in straight runs of pipework or where equipment and piping require protection against temperature-induced stress. Early installation during the design or retrofit phase is ideal for maximum system resilience.

Q: Where should these expansion bellows be installed within a facility or system?

A: These bellows are typically installed at points where straight pipelines are exposed to temperature fluctuations or where movement is anticipated. They are strategically placed to absorb pipe expansion within plant piping networks, refineries, and power or chemical plants.

Q: What is the manufacturing process for these bellows and how are quality standards maintained?

A: The bellows are manufactured using seamless or welded techniques based on design specifications. Each unit is fabricated to EJMA or ASME standards and undergoes rigorous hydrostatic and leakage testing at 1.5 times the working pressure to maintain safety and performance standards.

Q: How can users benefit from using Single Axial Expansion Bellows in their systems?

A: By installing these bellows, users minimize the risk of pipeline damage due to thermal expansions, reduce maintenance costs, and improve system longevity. Their customizable design ensures precise fit and performance for specific application requirements.
