Price 25000.0 INR/ Piece

MOQ : 1 Unit

Industrial Universal Expansion Bellows Specification

  • Head Code
  • Round
  • Flange
  • Media
  • Air, Steam, Gas
  • Surface Treatment
  • Other
  • Max. Temperature
  • 200 Celsius (oC)
  • Material
  • Technique
  • Others
  • Type
  • Others
  • Connecting Type
  • Others
  • Shape
  • Other
  • Working Pressure
  • 1 Bar
  • Corrosion Resistance
  • High
  • Application
  • Industrial Pipes, HVAC, Chemical Plants, Refineries
  • Pressure Rating
  • PN6, PN10, PN16
  • Flexibility
  • Multi-axis movement
  • Gasket Material
  • EPDM, Graphite (for flanged ends)
  • Design Life
  • 10,000 cycles minimum
  • Length
  • Customized as per requirement
  • End Connection
  • Flanged / Welded / Threaded
  • Test Pressure
  • 1.5 x Working Pressure
  • Expansion Capability
  • Axial, Lateral, Angular
  • Size Range
  • 50mm to 1200mm Diameter


Industrial Universal Expansion Bellows Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Delivery Time
  • 1 Week


About Industrial Universal Expansion Bellows

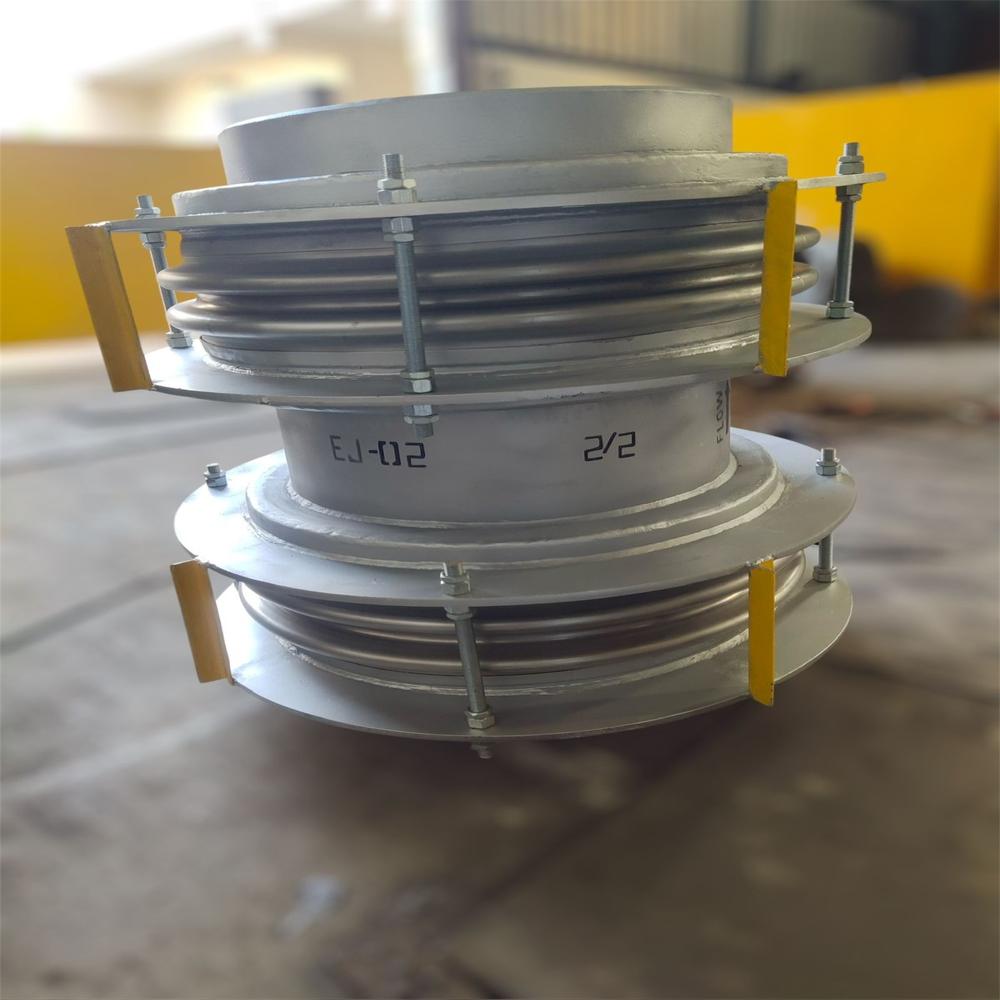

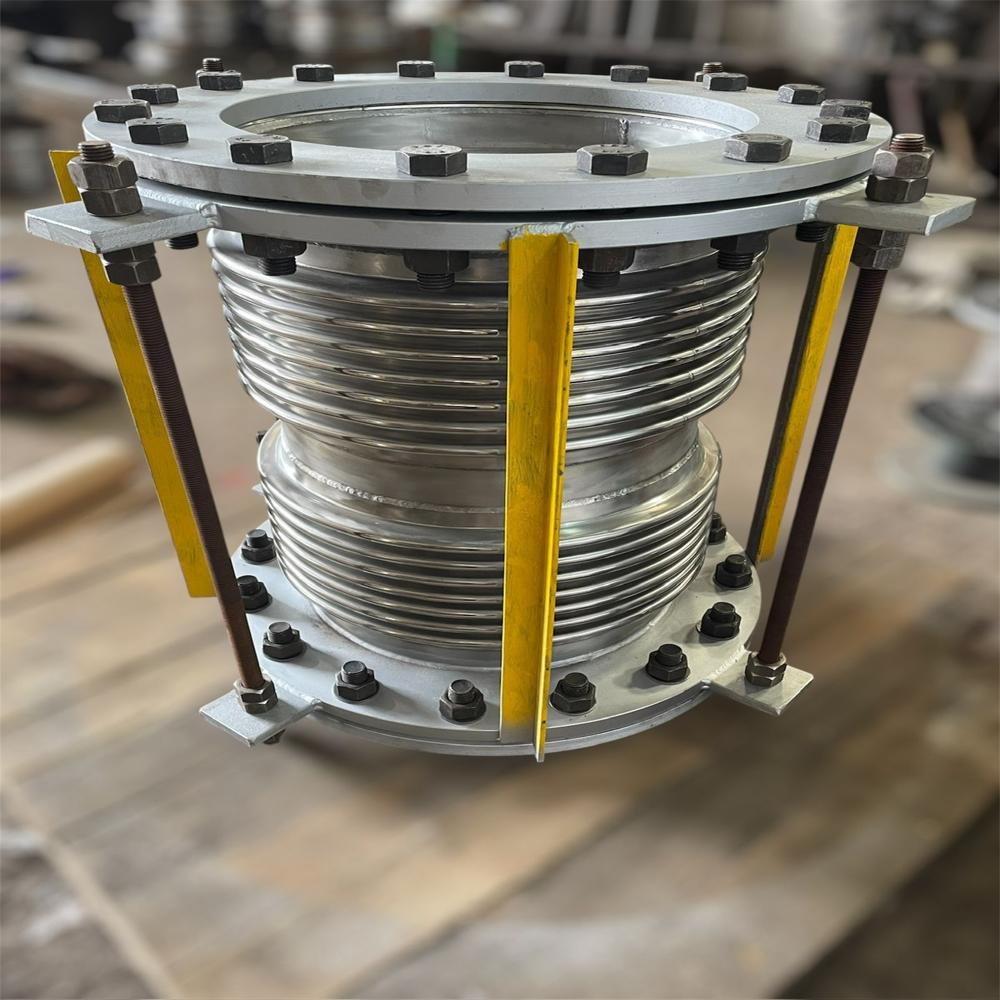

A universal expansion bellows is a metallic expansion joint consisting of two bellows assemblies connected by a common intermediate spool, designed to absorb lateral movement and angular rotation while minimizing reaction forces on the piping system. The universal configuration provides greater flexibility compared to a single bellows, making it suitable for applications involving large thermal expansion.
